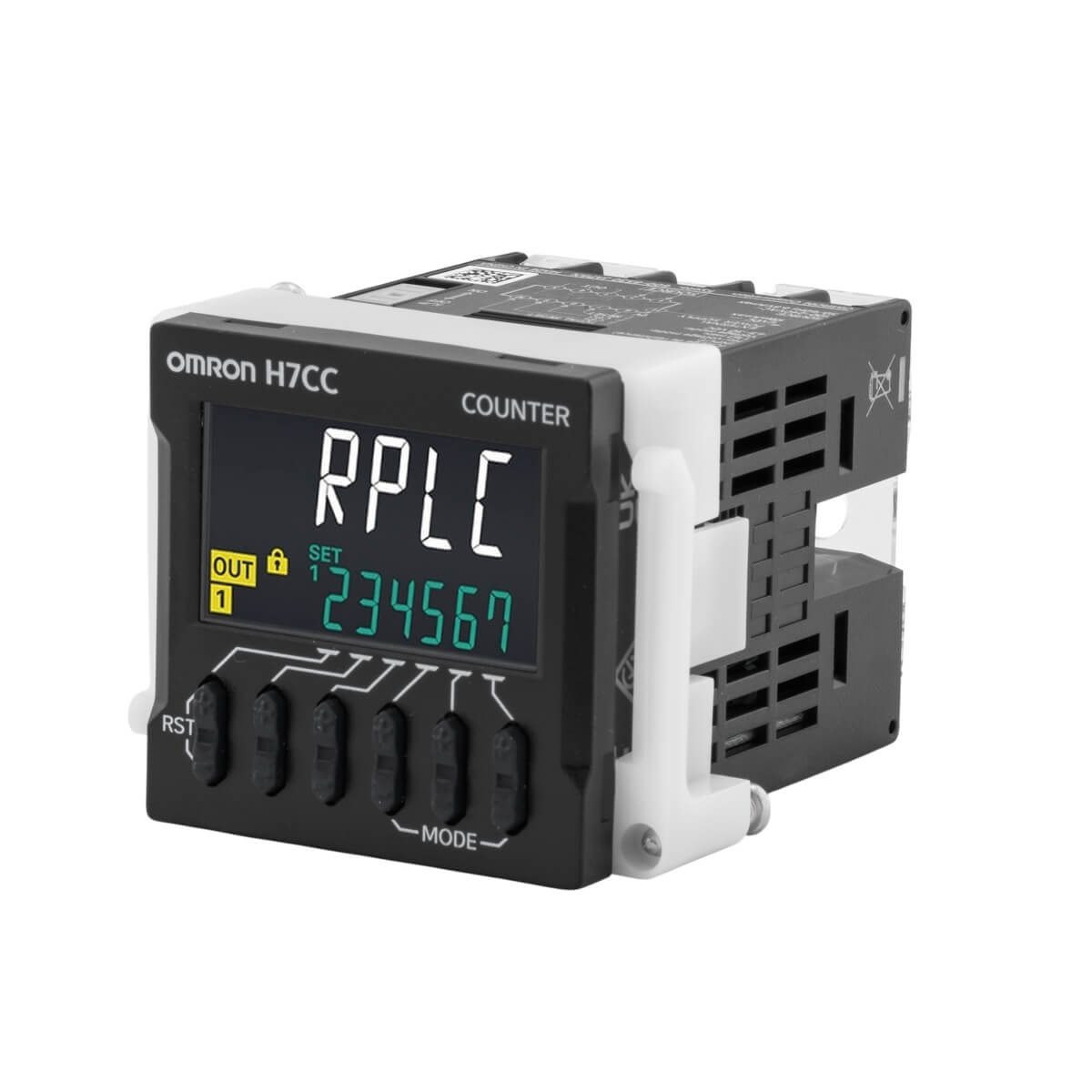

H7CC-A
H7CC-A; Digital counter, plug-in, screw terminals, 48×48 mm, IP66, 6 count digits, multifunction: 1-stage & total present counter, SPDT 3 A relay output, 100-240 VAC supply, 12 VDC aux. supply
2026 Liste Fiyatı;
355,20€
| Type | Pre-set counter |
|---|---|
| Size | 1/16 DIN (48 x 48 mm) |
| Counting functions | 1-stage counter, 1-stage counter with total counter |
| Counting range | -99999 – 999999 |
| LCD backlight | With backlight |
| Number of digits | 6 |
| Body color | Black |
| Installation type | On-panel |
| Terminal type | Screw |
| Output type | Relay |
| Relay output | 1 |
| Transistor output | 0 |
| Inputs | DC voltage, No-voltage |
| Supply voltage AC | 100-240 V |
| Speed | 10000 Hz |
| Product Width (unpacked) | 48 mm |
| Product Height (unpacked) | 48 mm |
| Product Depth (unpacked) | 78 mm |
