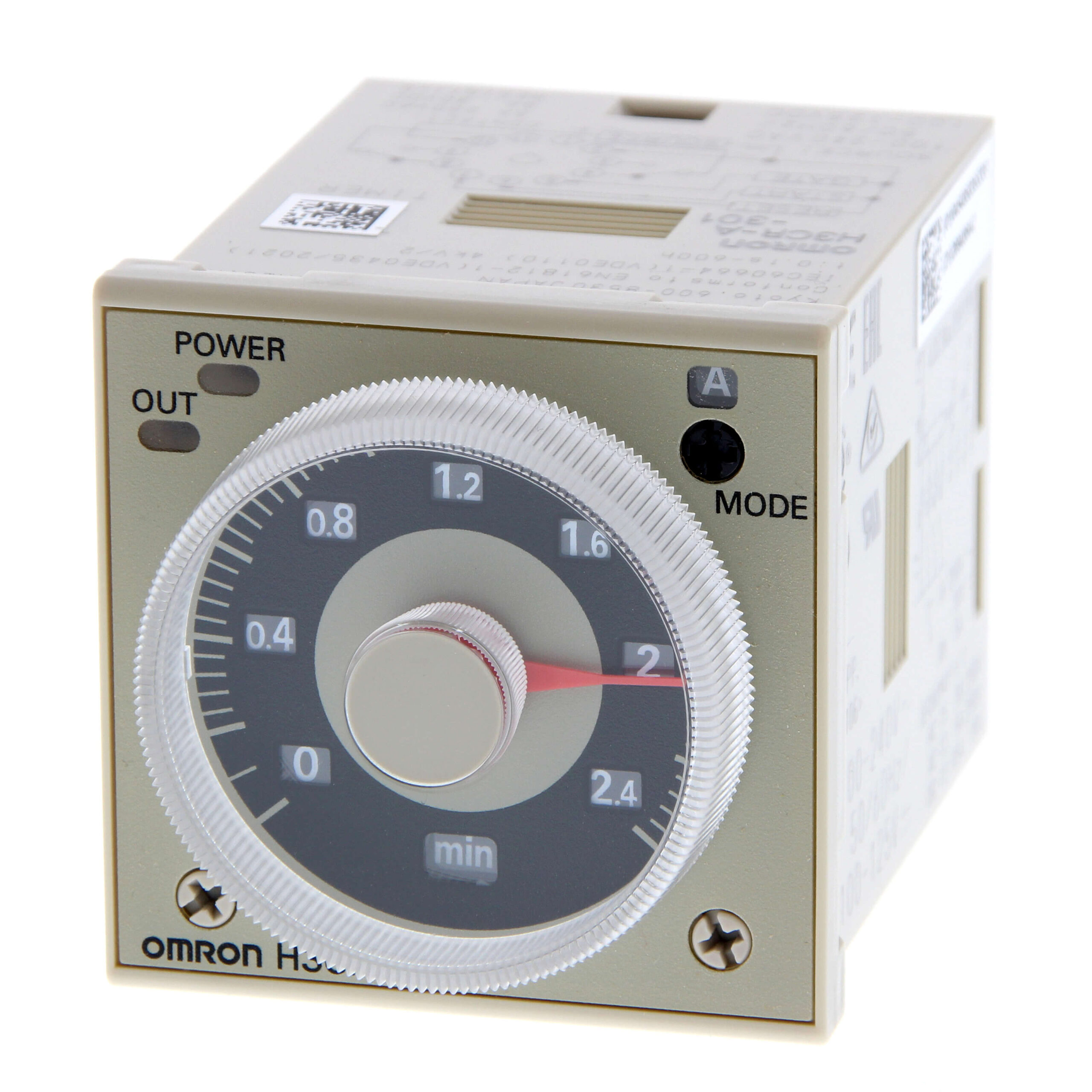

H3CR-A-301 AC24-48/DC12-48
H3CR-A-301 AC24-48/DC12-48; Timer, plug-in, 11-pin, 1/16DIN (48 x 48 mm), multifunction, 0.1s-600h, DPDT, 5 A
2026 Liste Fiyatı;
79,90€
| Type | Analog |
|---|---|
| Installation type | Socket |
| Functions | Multi-functional |
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal type | Plug-in |
| Operating mode | Flicker OFF Start (Signal Start), Flicker ON Start (Signal Start), Interval (Signal Start), OFF Delay (Signal), ON Delay (Signal Start), Signal ON/OFF Delay |
| Output type | Relay |
| Contact description | DPDT |
| Time range | 0.1 s – 600 h |
| Supply voltage AC | 24-48 V |
| Supply voltage DC | 12-48 V |
| Number of pin contact | 11 |
| Inputs | No-voltage |
