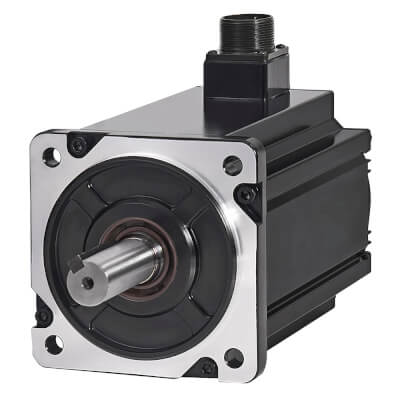

R88M-C6M1K520T-OS2
C6 AC servo motor, Middle inertia, 1.5 kW, 230 VAC, 2000 rpm,
7.16 Nm, absolute encoder, with oil seal and key
2026 Liste Fiyatı;
1.231,00€
| Ağırlık | 7000 g |
|---|---|
| Drive supply voltage | 230 V single phase |
| Encoder type | Absolute with battery |
| Motor with brake | No |
| Rated output | 1.5 kW |
| Rated speed | 2000 r/min |
| Rated torque | 7.16 Nm |
| Servo control method | EtherCAT |
Servo Sürücü
R88D-C6N15H-ECT-GSC6 AC servo drive, Standard model, EtherCAT Communications, 1.5 kW, 1/3-phase, 230 VACGüç Kablosu
R88A-CACC001-5SF-IEC6 series servo motor power cable, 1.5 m, non braked, 230 V / 400 V: 850 W – 2.5 kWEnkoder Kablosu
R88A-CRCB001-5NF-IEC6 series servo motor encoder cable, 1.5 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB003NF-IEC6 series servo motor encoder cable, 3 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB005NF-IEC6 series servo motor encoder cable, 5 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB010NF-IEC6 series servo motor encoder cable, 10 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB015NF-IEC6 series servo motor encoder cable, 15 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB020NF-IEC6 series servo motor encoder cable, 20 m, without battery, 230 V / 400 V: 850 W – 7.5 kW
R88A-CRCB001-5NF-BS-IEC6 series servo motor encoder cable, 1.5 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB003NF-BS-IEC6 series servo motor encoder cable, 3 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB005NF-BS-IEC6 series servo motor encoder cable, 5 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB010NF-BS-IEC6 series servo motor encoder cable, 10 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB015NF-BS-IEC6 series servo motor encoder cable, 15 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB020NF-BS-IEC6 series servo motor encoder cable, 20 m, with battery, 230 V / 400 V: 850 W – 7.5 kW
