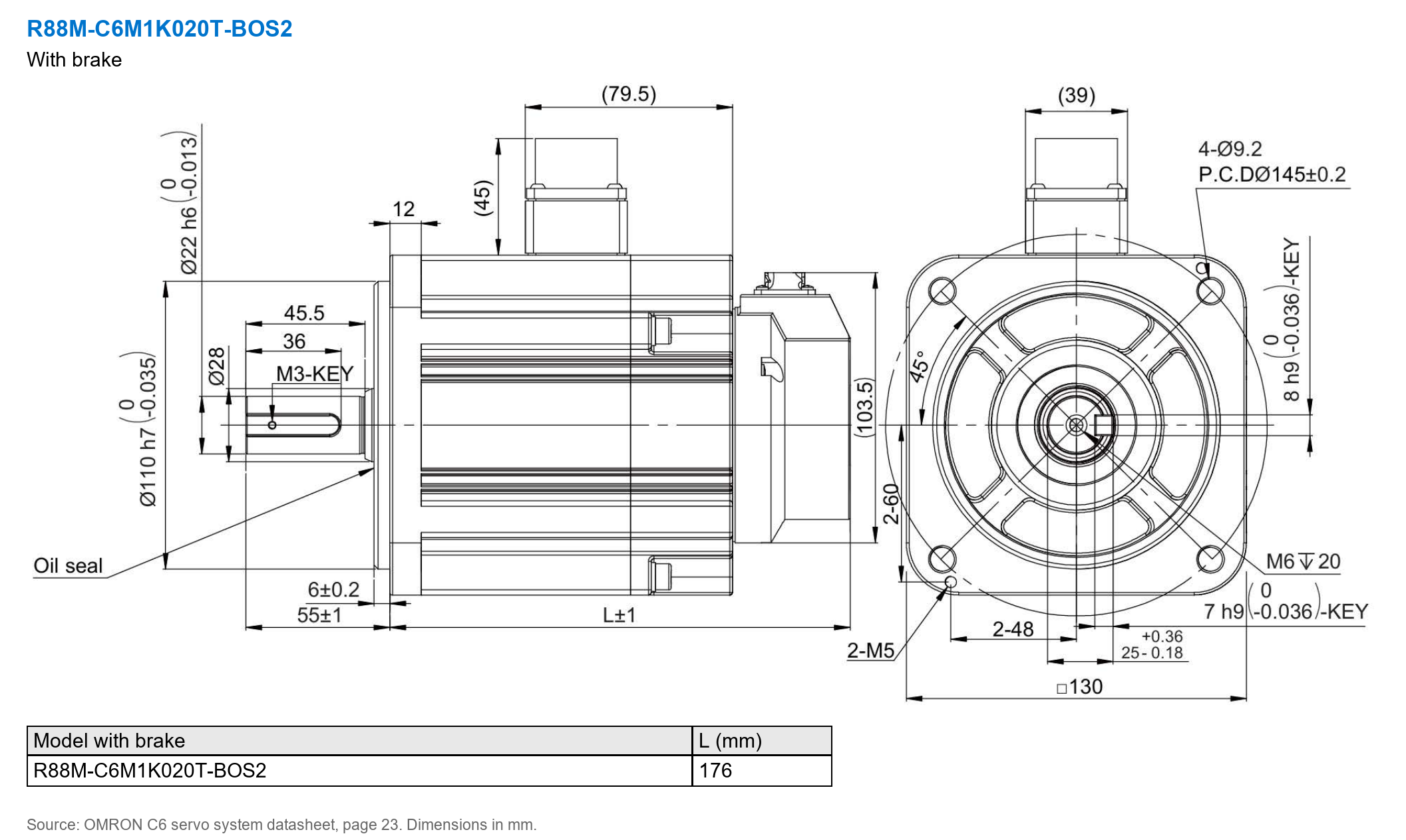

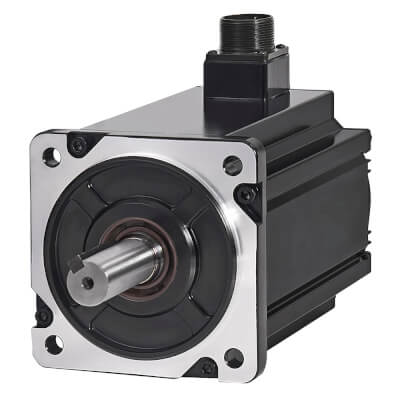

R88M-C6M1K020T-BOS2
C6 AC servo motor, Middle
inertia, 1 kW, 230 VAC, 2000 rpm, 4.77 Nm, absolute encoder, with brake, with
oil seal and key
2026 Liste Fiyatı;
1.461,00€
| Ağırlık | 7900 g |
|---|---|
| Drive supply voltage | 230 V single phase |
| Encoder type | Absolute with battery |
| Motor with brake | Yes |
| Rated output | 1 kW |
| Rated speed | 2000 r/min |
| Rated torque | 4.77 Nm |
| Servo control method | EtherCAT |
Servo Sürücü
R88D-C6N10H-ECT-GSC6 AC servo drive, Standard model, EtherCAT Communications, 1 kW, 1/3-phase, 230 ACGüç Kablosu (fren hatlı)
R88A-CACC001-5BF-IEC6 series servo motor power cable, 1.5 m, with brake, 230 V / 400 V: 850 W – 2.5 kWEnkoder Kablosu
R88A-CRCB001-5NF-IEC6 series servo motor encoder cable, 1.5 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB003NF-IEC6 series servo motor encoder cable, 3 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB005NF-IEC6 series servo motor encoder cable, 5 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB010NF-IEC6 series servo motor encoder cable, 10 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB015NF-IEC6 series servo motor encoder cable, 15 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB020NF-IEC6 series servo motor encoder cable, 20 m, without battery, 230 V / 400 V: 850 W – 7.5 kW
R88A-CRCB001-5NF-BS-IEC6 series servo motor encoder cable, 1.5 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB003NF-BS-IEC6 series servo motor encoder cable, 3 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB005NF-BS-IEC6 series servo motor encoder cable, 5 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB010NF-BS-IEC6 series servo motor encoder cable, 10 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB015NF-BS-IEC6 series servo motor encoder cable, 15 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB020NF-BS-IEC6 series servo motor encoder cable, 20 m, with battery, 230 V / 400 V: 850 W – 7.5 kW
