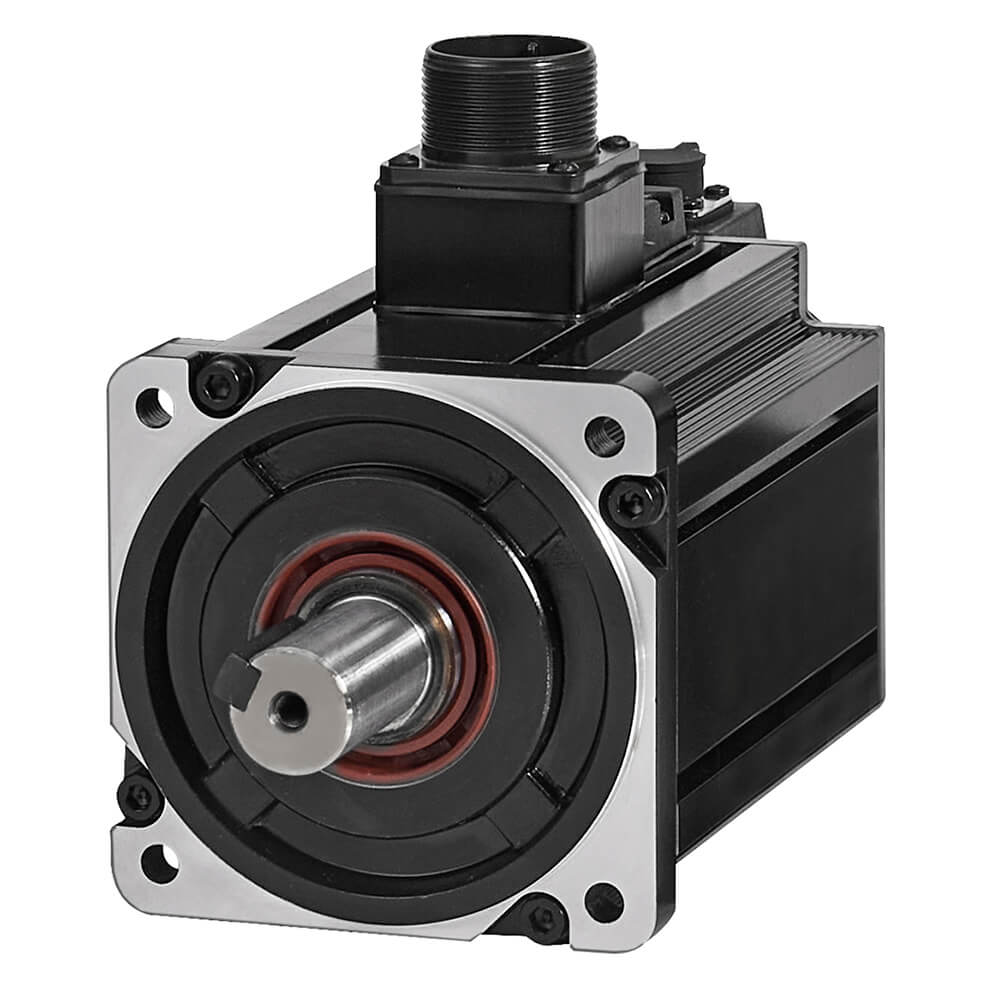

R88M-C6L2K030C-BOS2
C6 AC servo motor, Low inertia,
2 kW, 400 VAC, 3000 rpm, 6.4 Nm, absolute encoder, with brake, with oil seal
and key
2026 Liste Fiyatı;
2.387,00€
| Ağırlık | 6700 g |
|---|---|
| Drive supply voltage | 400 V three phase |
| Encoder type | Absolute with battery |
| Motor with brake | Yes |
| Rated output | 2 kW |
| Rated speed | 3000 r/min |
| Rated torque | 6.4 Nm |
| Servo control method | EtherCAT |
Servo Sürücü
R88D-C6N30F-ECT-GSC6 AC servo drive, Standard model, EtherCAT Communications, 3 kW, 3-phase, 400 VACGüç Kablosu (fren hatlı)
R88A-CACC001-5BF-IEC6 series servo motor power cable, 1.5 m, with brake, 230 V / 400 V: 850 W – 2.5 kWEnkoder Kablosu
R88A-CRCB001-5NF-IEC6 series servo motor encoder cable, 1.5 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB003NF-IEC6 series servo motor encoder cable, 3 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB005NF-IEC6 series servo motor encoder cable, 5 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB010NF-IEC6 series servo motor encoder cable, 10 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB015NF-IEC6 series servo motor encoder cable, 15 m, without battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB020NF-IEC6 series servo motor encoder cable, 20 m, without battery, 230 V / 400 V: 850 W – 7.5 kW
R88A-CRCB001-5NF-BS-IEC6 series servo motor encoder cable, 1.5 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB003NF-BS-IEC6 series servo motor encoder cable, 3 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB005NF-BS-IEC6 series servo motor encoder cable, 5 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB010NF-BS-IEC6 series servo motor encoder cable, 10 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB015NF-BS-IEC6 series servo motor encoder cable, 15 m, with battery, 230 V / 400 V: 850 W – 7.5 kWR88A-CRCB020NF-BS-IEC6 series servo motor encoder cable, 20 m, with battery, 230 V / 400 V: 850 W – 7.5 kW
