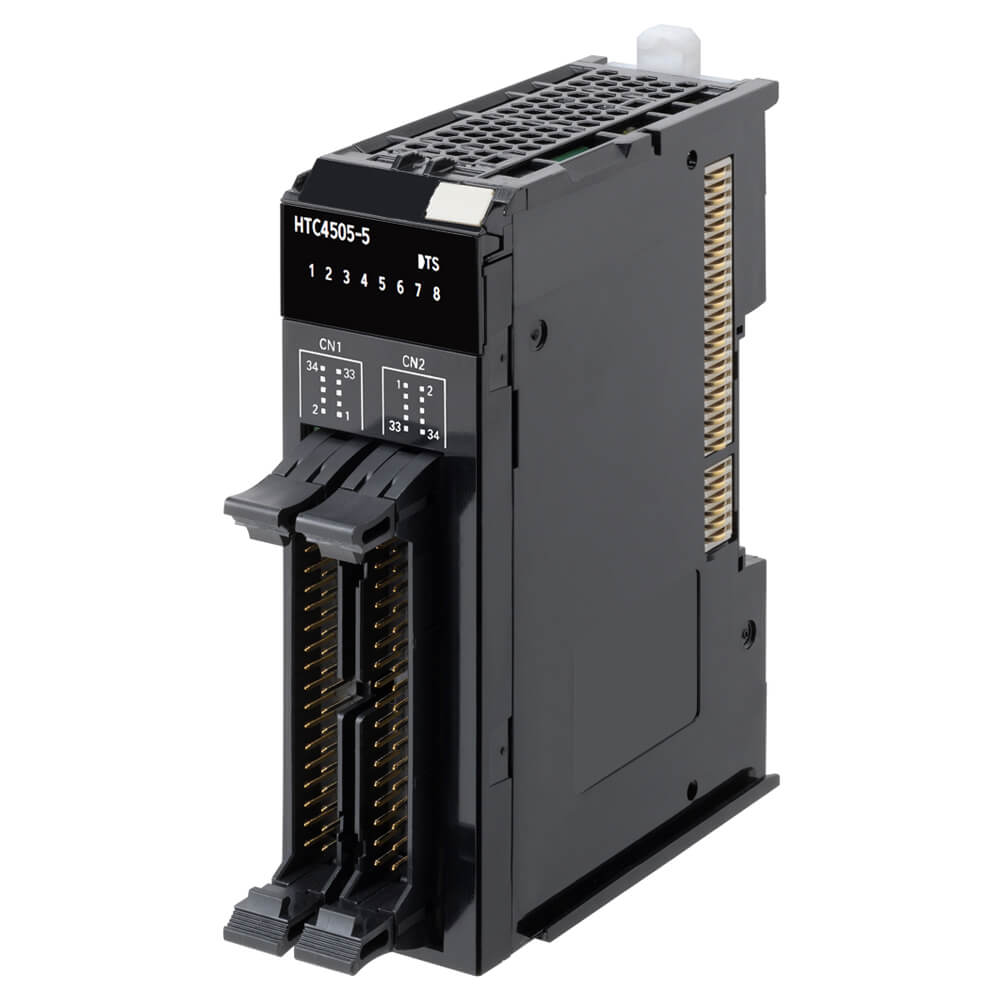

NX-HTC4505-5
NX-HTC4505-5; 8 loops, Thermocouple/Pt100/Analog input, 8 Voltage outputs (for driving SSR), Heat or Cool control, Heater burnout alarm, MIL connector
2026 Liste Fiyatı;
1.701,00€
| I/O system | NX I/O Bus |
|---|---|
| Type of module | Temperature control |
| Number of digital inputs | 0 |
| Digital input type | None |
| Number of digital outputs | 8 |
| Digital output type | PNP, PWM |
| Number of analog inputs | 8 |
| Temperature input type | B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Number of control loops | 8 |
| Linear analog input type | 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Input circuit type | Isolated |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| Conversion time | 50 ms/unit |
| Signal processing | Free running |
| Control function | Heat or cool |
| Heater burnout detection | Yes |
| IO-Link master | No |
| I/O connection type | MIL (plug not included) |
| Number of I/O connectors | 2 |
| Detachable I/O terminal block | No |
| Suitable for safety functions | No |
| SIL according to IEC 61508 | None |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 106 mm |
| Product Width (unpacked) | 32.1 mm |
| Product Depth (unpacked) | 89.8 mm |
| Product Weight (unpacked) | 127 g |
