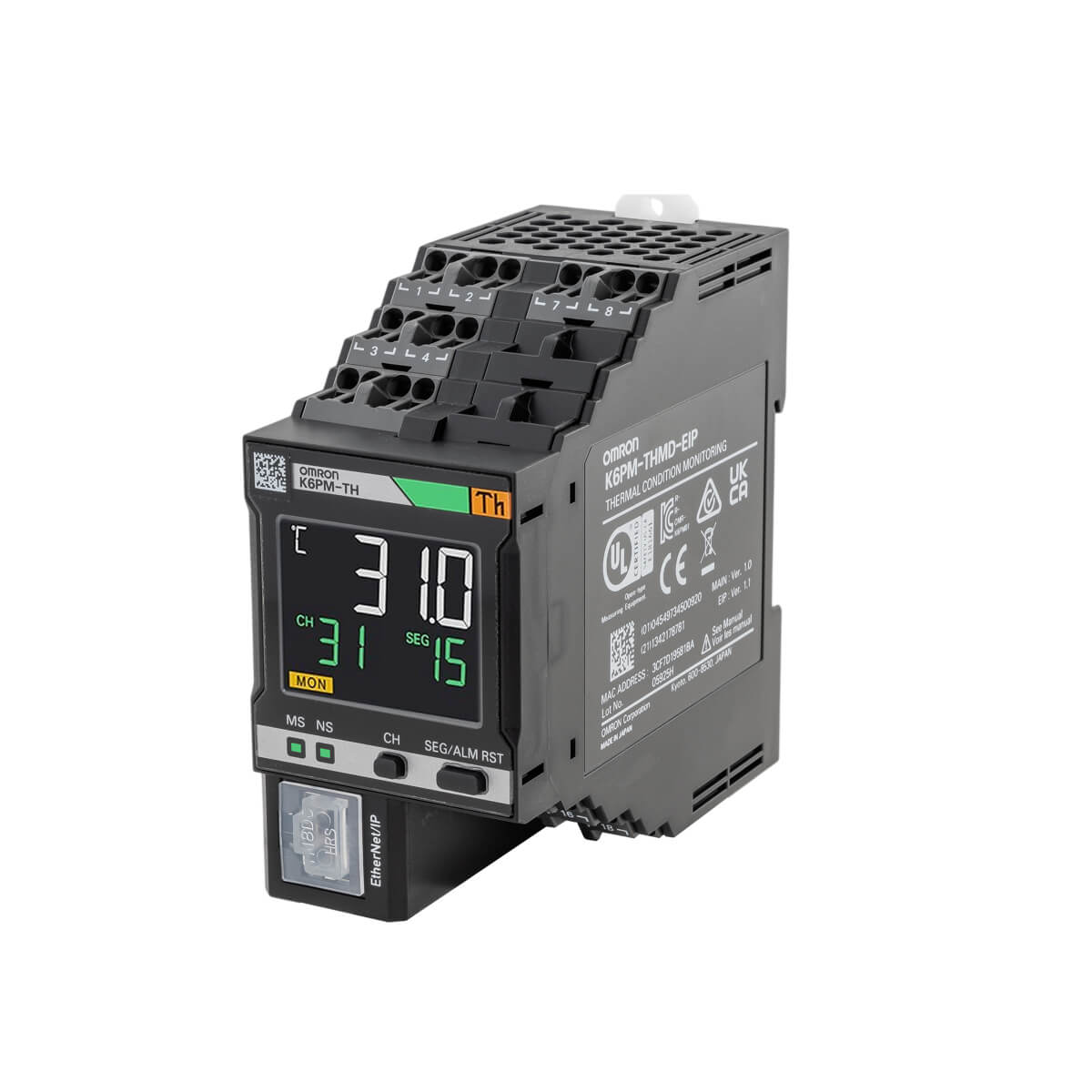

K6PM-THMD-EIP
K6PM-THMD-EIP; Thermal condition monitoring device for control cabinets and panels, 24 VDC, transistor control output, Push-in Plus, LCD display, EtherNet/IP and Modbus TCP
2026 Liste Fiyatı;
794,00€
| Supply voltage AC | 20.4-26.4 V |
|---|---|
| Supply voltage DC | 20.4-26.4 V |
| Application | Predict and monitor the temperature trend of panels and surfaces |
| Temperature range | 0-200 °C |
| Ambient temperature | -10-55 °C |
| Number of digital outputs | 3 |
| Output type | NPN, Transistor |
| Image width | 32 pixels |
| Image height | 32 pixels |
| View angle | 90° x 90° (window of 200 mm x 200 mm at 10 cm) |
| Product Width (unpacked) | 45 mm |
| Product Height (unpacked) | 90 mm |
| Product Depth (unpacked) | 91.9 mm |
| Communication port(s) | EtherNet/IP, MODBUS/TCP, Serial RS-485 |
| Mounting method | DIN rail |
| Mounting position | Controller: panel, IR camera: panel door (up to 31 per each controller) |
| Setup method | Free software |
| User interface | Condition monitoring software tool, Front LED, LCD screen |
