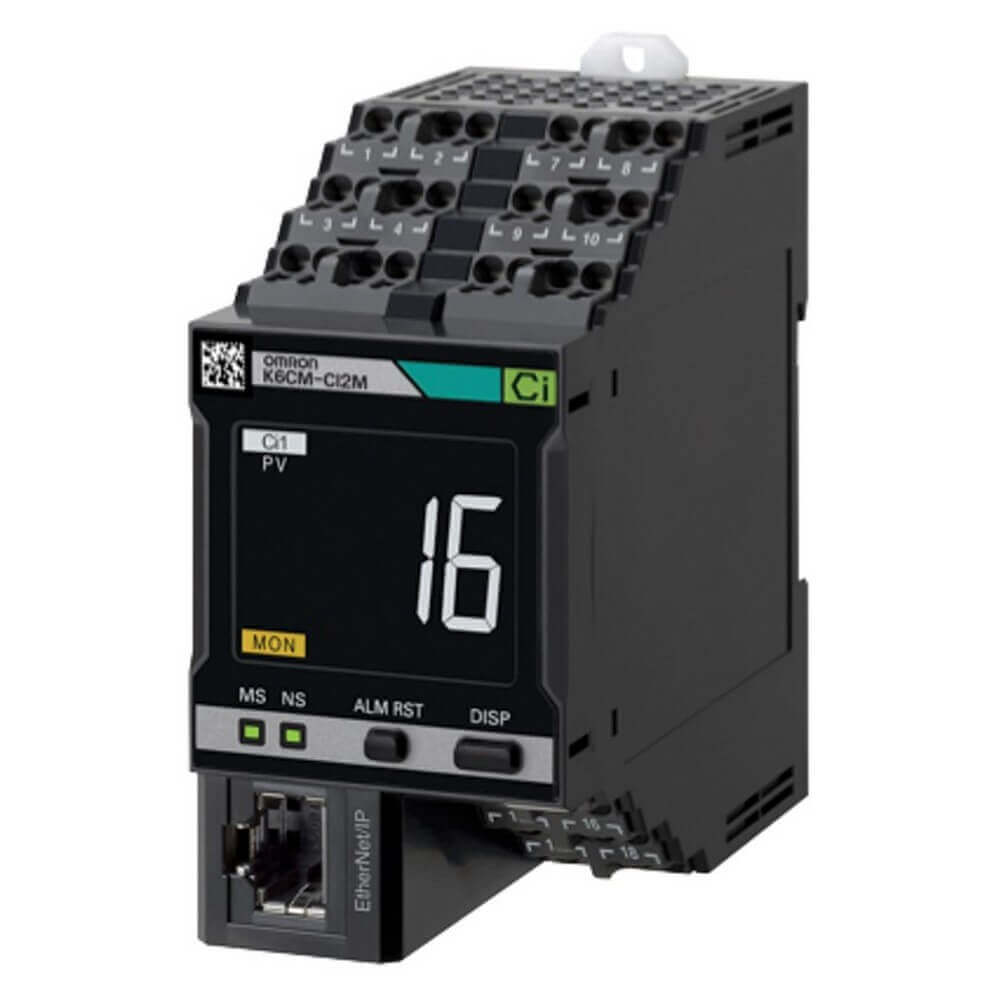

K6CM-CI2MA-EIP
K6CM-CI2MA-EIP; Motor Condition Monitoring, AC, 3-phase, Induction motor, Current Analysis model, 100 to 240 VAC, Transistor control output, Push-in Plus, LCD display, Ethernet IP/Modus, applicable in environment with inverters
2026 Liste Fiyatı;
1.022,00€
| Supply voltage AC | 100-240 V |
|---|---|
| Applicable motor type | Three phase induction motor (rated voltage 600 V max.) |
| Application | Bearing damage, Load misalignment, Load unbalance, Obstacles and loose belt, Pump cavitation, Rotor/stator issues |
| Analysis method | Current, Degradation level 1 (time domain), Degradation level 2 (frequency domain), Moving average |
| Rated input current | 1-600 A |
| Number of digital outputs | 3 |
| Output type | NPN, Transistor |
| Product Width (unpacked) | 45 mm |
| Product Height (unpacked) | 90 mm |
| Product Depth (unpacked) | 91.9 mm |
| Communication port(s) | EtherNet/IP, MODBUS/TCP |
| Mounting method | DIN rail |
| Mounting position | CT: panel, Controller: panel |
| Setup method | Free software |
| User interface | Condition monitoring software tool, Front LED, LCD screen |
