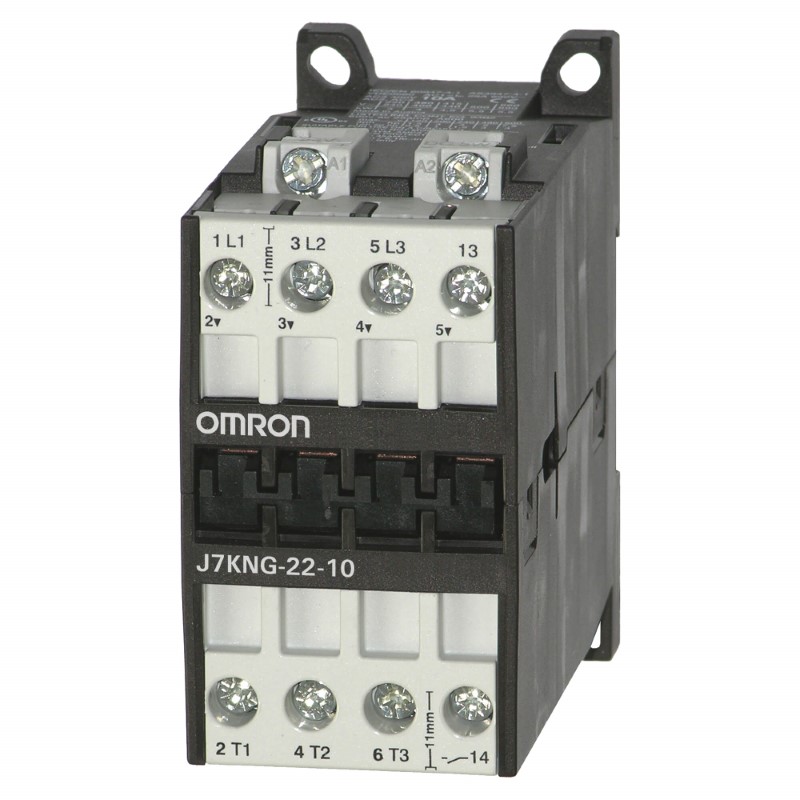

J7KNG-22D-10 110D
J7KNG-22D-10 110D; Contactor (DC-coil), 3-pole, 11 kW; 22 A AC3 (400 VAC) + 1 NO, 110 VDC, Aux. contact for electronic circuits (17V, 5mA)
2026 Liste Fiyatı;
| Main Contacts NO | 3 |
|---|---|
| Auxiliary Contacts NO | 1 |
| Auxiliary Contacts NC | – |
| Coil voltage | 110 V |
| Operation voltage | DC |
| Rated power AC2, AC3 at 400 V [kW] | 11 kW |
| Rated current AC3 at 400 V [A] | 22 A |
| Rated current AC1 at 690 V [A] | 32 A |
| Rated current AC1 at 440 V [A] | 22 A |
| Terminal type | Screw |
| Poles | 3 |
