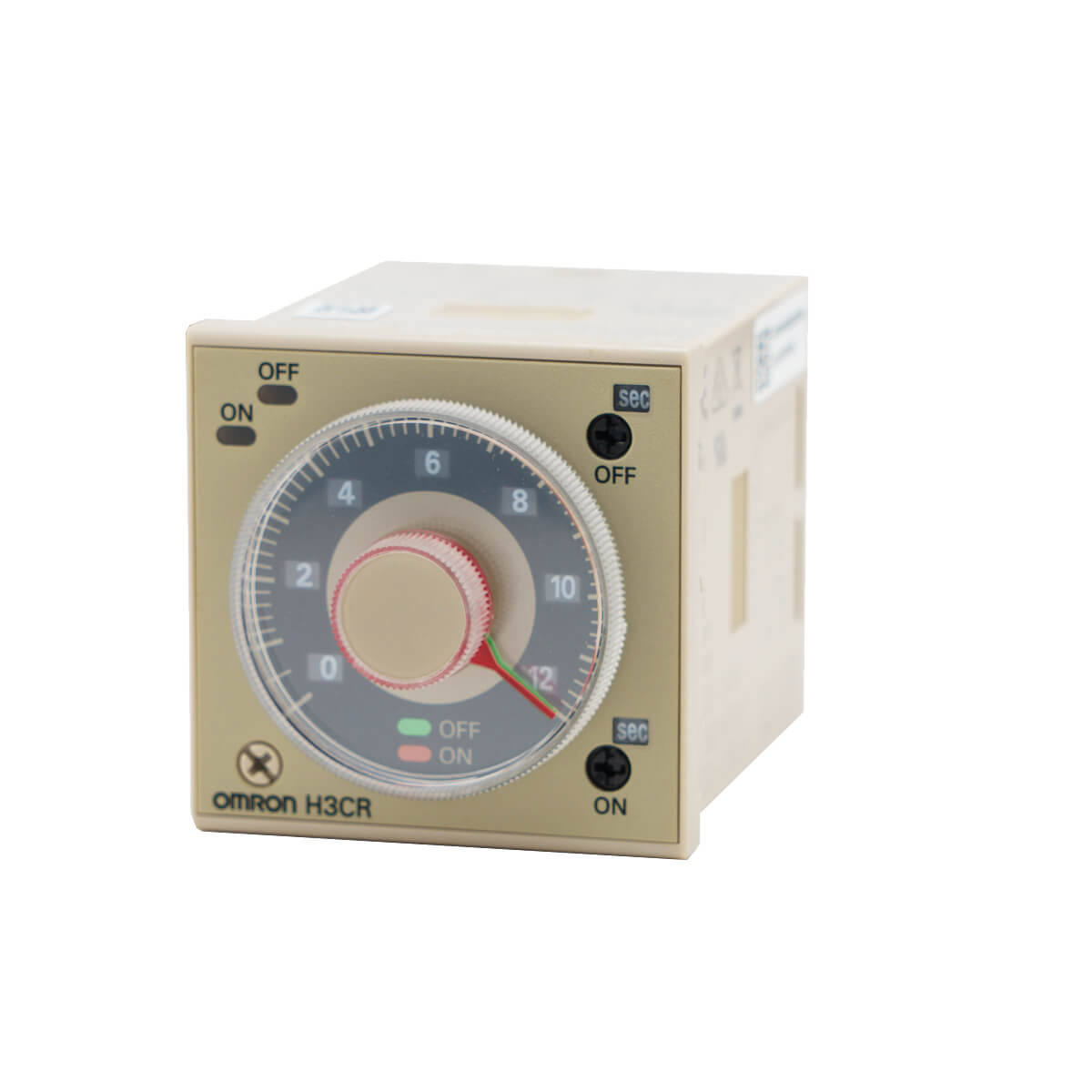

H3CR-FN AC24-48/DC12-48
H3CR-FN AC24-48/DC12-48; Timer, plug-in, 11-pin, 1/16DIN (48 x 48 mm), twin on & off-delay, flicker ON start, 0.05s-300h, DPDT, 5 A, 24-48VAC, 12-48VDC
2026 Liste Fiyatı;
| Type | Analog |
|---|---|
| Installation type | Socket |
| Functions | Twin |
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal type | Plug-in |
| Operating mode | Flicker ON Start (Power ON Start) |
| Output type | Relay |
| Contact description | DPDT |
| Time range | 0.05 s – 300 h |
| Supply voltage AC | 24-48 V |
| Supply voltage DC | 12-48 V |
| Number of pin contact | 11 |
