Flying Trigger Technology High-Speed Inspection With Accuracy

Challenges in maintaining inspection accuracy

Vision inspection can help us improve the quality of our products. However, when it comes to high speed production of more than 1000ppm, it becomes challenging to capture images accurately. When producing at such high speed, it is challenging yet crucial, to coordinate and control the system for accurate image inspection.​

Balance between inspection quality and takt time through Flying Trigger Control

Applications of Predictive Synchronous Control

Inspection of elongate and large workpiece

Synchronization of Motion Control

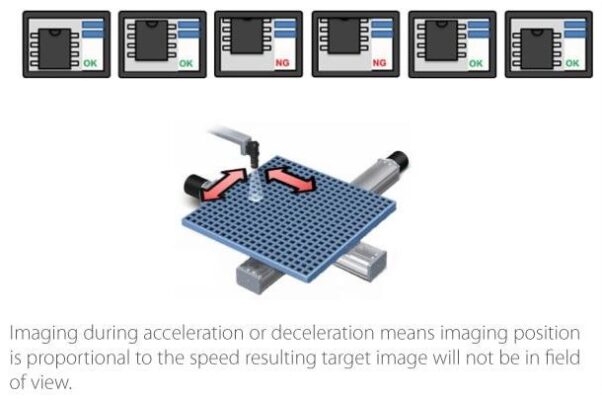

Inspection of Parts in a Tray

Benefits with OMRON Flying Trigger Solution

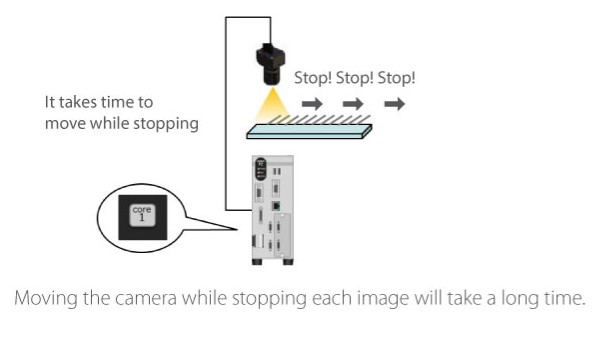

With vibrations occurring when stopping, the inspection may conducted only after settlement of the vibrations

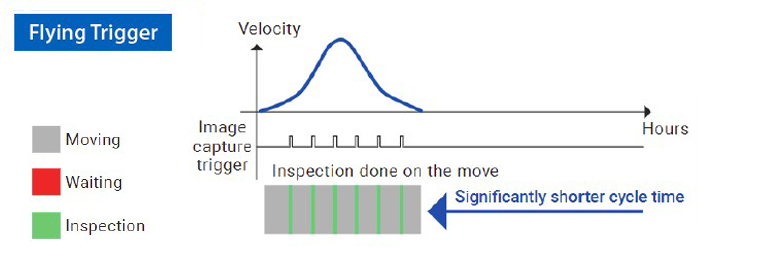

Inspection conducted while in motion, the stopping operation is eliminated, significantly reducing the cycle time.
